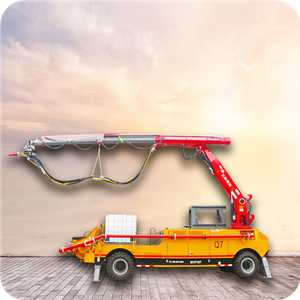

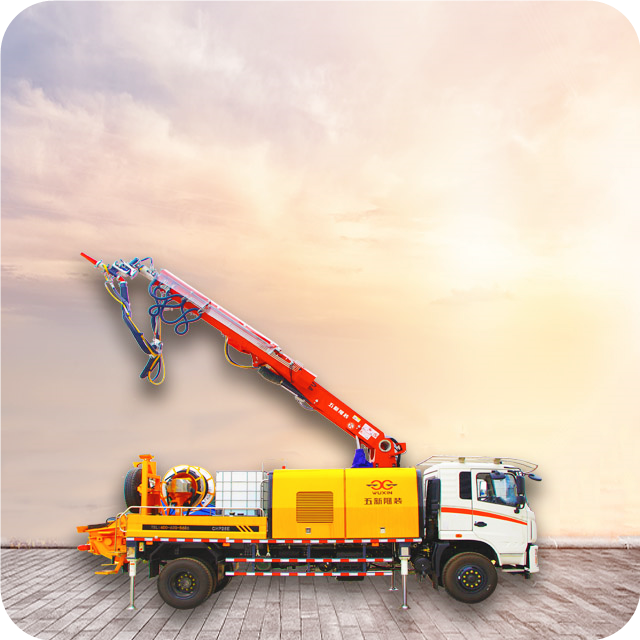

Five reasons for your selection of Uniroc concrete wet spraying machine
1. Better money-saving: After seven generations of product upgrading, the technology of the equipment is mature, of which the failure rate is low and the consumption of parts becomes less
2. Higher durability: It is equipped with the seventh generation of new boom, which has been subjected to 10 million fatigue damage tests, so the boom is more durable
3. Low maintenance: As designed with hose accelerator pump independently developed by Wuxing, which is resistant to strong acid and alkali corrosion, it can generate stable accelerator flow; the hose has a long service life and low maintenance cost;
4. More stability: The protection level of hydraulic system and electrical system is comprehensively improved, so the stability of equipment is greatly enhanced
5. Better applicability: It is equipped with dual fuel and electric power system, of which the electric drive is used for normal construction and diesel fuel is used for emergency work in case of power failure.
Technical parameters
Overall parameters
| Model | CHP30F |
Total length | 9450mm | |
Total width | 2500mm | |
Total height | 3380mm | |
Rated weight | 15.8T (without accelerator) | |
Boom support and outrigger | Boom structure | Boom and jib pitch |
Two telescopic sections of jib | ||
Jet height | 16m | |
Jet width | 24m | |
Boom support pitch | 0-70° | |
Jib pitch | +20°-110° | |
Boom rotation angle | 360° | |
Axial rotation angle of nozzle | 360° | |
Vertical axial swing angle of nozzle | 240° | |
Sweep angle of nozzle | 360° | |
Center width of front outrigger cylinder | 2186mm | |
Center width of rear outrigger cylinder | 2186mm | |
Center distance of front and rear outrigger cylinders | 5030mm | |
Pumping system | Drive mode | Motor |
Rated power of motor | 55kw | |
Operating voltage of motor | 380V | |
Concrete displacement | 30m3/h | |
Concrete outlet pressure | 7.5Mpa | |
Inner diameter of conveying cylinder | Φ160mm | |
Stroke of conveying cylinder | 1000mm | |
Hydraulic system | Open | |
Diameter of conveying pipe | Φ125～φ80mm with reduced diameter | |
Diameter of concreting nozzle | Φ50mm | |
Chassis | Wheelbase | 5250mm |
Front axle track | 1940mm | |
Rear axle track | 1860mm | |
Capacity of fuel tank | 160L | |
Maximum speed | ≤90km/h | |
Maximum gradeability | ≤20% | |
Minimum ground clearance | 260mm | |
Minimum turning radius | 18m |
