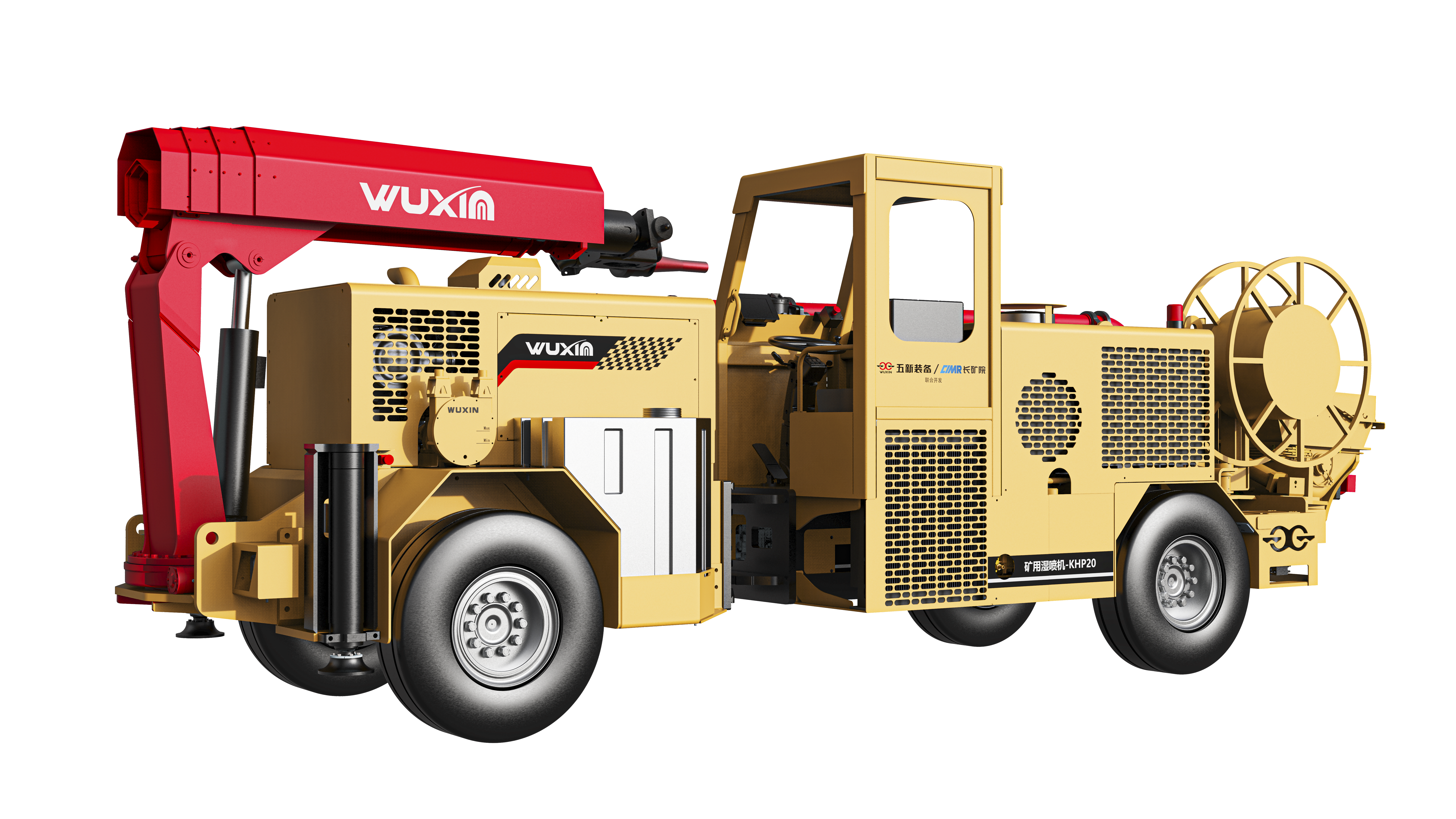

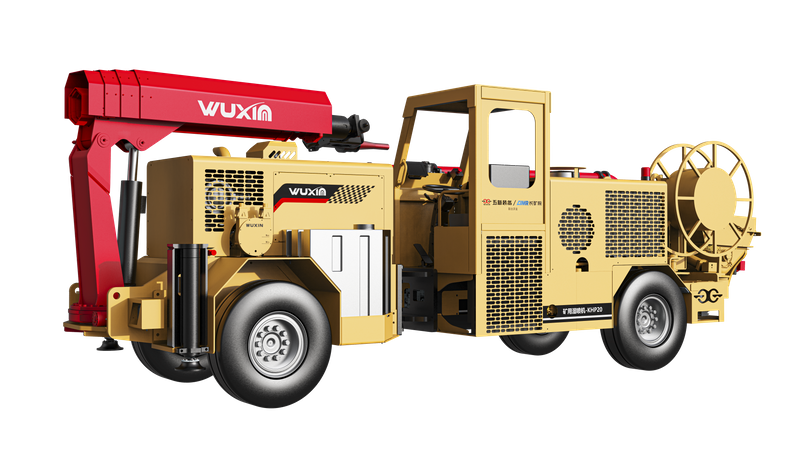

Scope of Application:
Suitable for shotcrete and rock bolting support operations in mine roadways, hydropower stations, and underground caverns with cross-sectional areas ranging from 8m² to 64m².
Main Features:
Flexible Manipulator Movements: The mechanical arm offers high agility, enabling comprehensive coverage with a large working range and eliminating blind spots.
Robust Boom Structure: The boom has undergone rigorous fatigue testing, ensuring exceptional durability and long-term reliability.
High-Stability Systems: Equipped with hydraulics and electrical systems featuring high protection ratings, guaranteeing superior equipment stability.
Main Technical Parameters:
| Length | 8450mm |
Width | 1800mm |
Height | 2450mm |
| Max. Theoretic output | 20m³/h |
| Max. spraying height | 10m |
| Max. spraying width | 16m |
| Turning radius | Outer 5.8m/inner3.67m |
| Max. speed | 19km/h |
| Climbing ability | 18° |
Approach angl | 18° |
Departure angle | 16° |
Total weight | Approx. 13.5t |
| Engine power | 96kW |
Motor work power | 103 kW（main motor 45kW +air compressor 55kW+ else 3kW） |
| Carrier | |
| Engine type | 4-Cylinder Water-Cooled Turbocharged Diesel Engine |
| Engine rated power | 93kw@ 2200 rpm |
Engine emission standar | China III |
Transmission | Hydrostatic transmission, 4WD |
| Diesel tank capacity | 90L |
Wheelbase | 3820mm |
Ground clearance | 340mm（Middle Section of Carrier） |
Oscillation | ±7° |
Steering | Articulated steering |
Service brakes | Hydrostatic and positive braking |
Boom | |
| Boom structure | Swing Boom+Telescopic Boom |
Max. spraying height | 10m |
Max. spraying width | 16m |
Boom slewing angle | -90°~175° |
Boom pitch angle | -40°~65° |
Boom structure and stroke | 4-section 3-stage telescopic boom Boom extension：4000mm |
| Nozzle horizontal axial rotation angle | 360° |
| Nozzle vertical axial tilt angle | 240° |
