Bridge Equipment

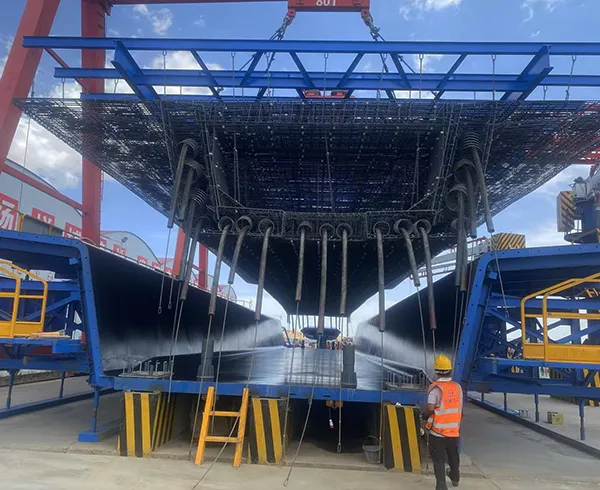

Precast Box Girder Formwork
Industry-leading star product, serving 99% of China's high-speed railways.
Globally Trusted
Over 5,000 sets delivered cumulatively, serving 600+ girder precasting yards.
Durable & Reliable
600+ Precast girders produced per set, demonstrating high utilization and turnover efficiency.
High Residual Value
Maintains higher resale value than the market average, demonstrating strong industry recognition.
Overall Dimensions | 34190*16750*5196 mm (External Formwork) / 34800*5624*2888 mm (Internal Formwork) |
Operating Temperature Range | -10℃ to 50℃ |
Standard Precasting Pedestal Height | 800mm |
Opening & Closing Mode of Internal Formwork | Hydraulic Actuation with Mechanical Locking |
Travelling Mode of Internal Formwork | Automatic Longitudinal Travelling Type / Traction Type |
Intelligent Attached Vibrator System (Optional) | Internal Formwork Travelling Trolley (Optional) | ||
|---|---|---|---|
Vibrator Arrangement | Staggered Arrangement | Overall Dimensions | 7180*1100*2100 mm |
Vibration Duration | Max. 60 s | Precasting Pedestal Height Range | 800 mm - 950 mm |
Simultaneous Operating Sets | 4 groups, 8 vibrators | Spacing Between Precasting Pedestals | ≤ 81.2 m |
Vibration Mode | Single vibrator / Single-side / Double-side | Operation Mode | Wireless Remote Control + Wired Hand Controller |
Operation Mode | Touchscreen / Strap-Type Remote Controller | Traction Speed | ≤ 5 m/min |
Precast Box Girder Formwork
