Tunneling Equipment

Platfrom lifter HLG312M

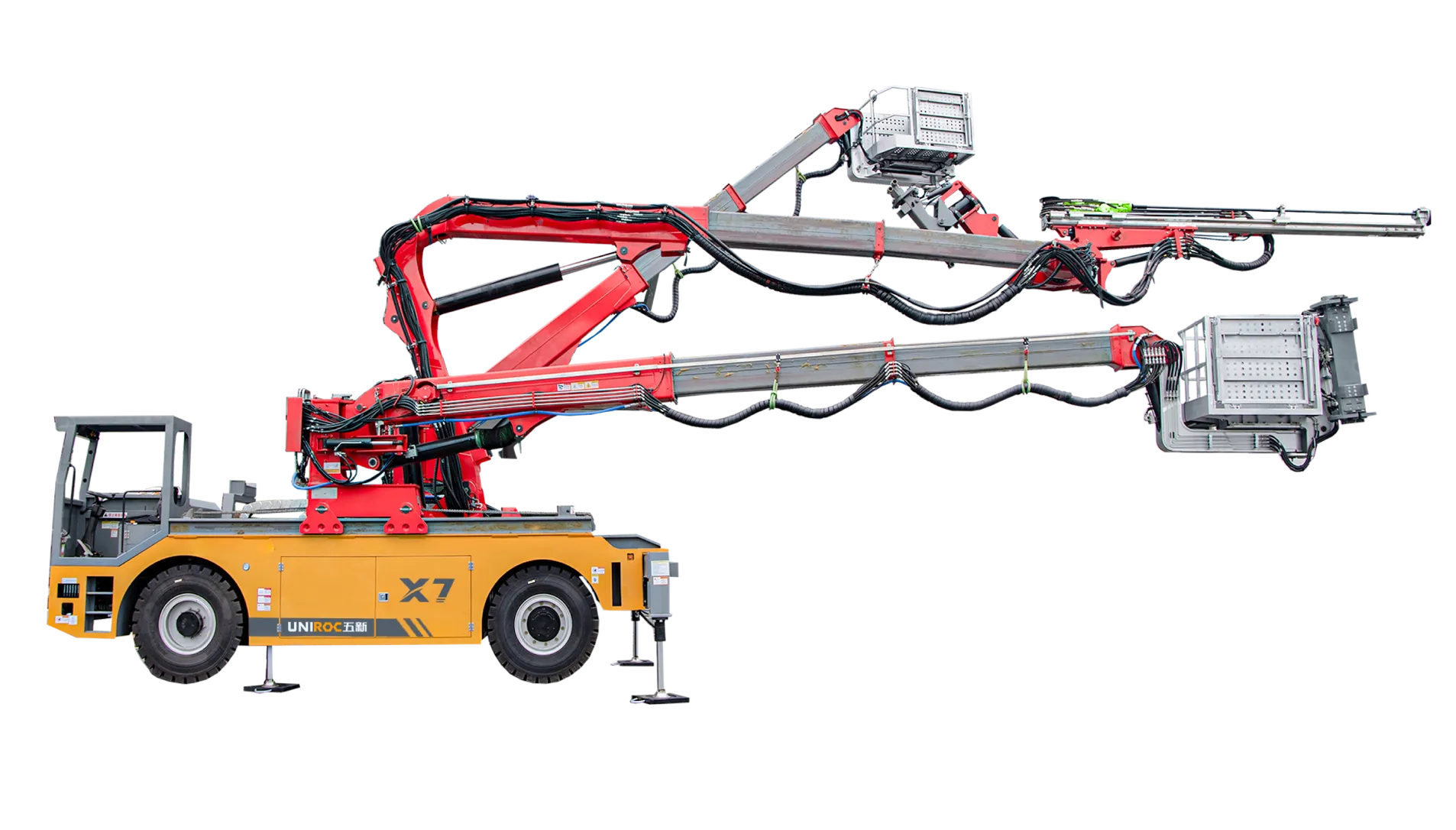

Platfrom lifter HLG312M

This equipment integrates multiple aerial operation functions including arch frame installation, rebar mesh laying, blasting charge loading, and anchor bolt installation.

FEATURES

Main Features:

1.Equipped with a bolt drilling boom, it enables seamless transition from arch erection to toe bolting, reducing equipment changeover time.

2.Extra-large working platform accommodates 6–8 workers simultaneously for rapid charging operations.

3.Dual-power system allows seamless switching between diesel and electric modes, balancing efficiency and environmental friendliness.

SPECIFICATIONS

Platfrom lifter HLG312M

Model
HLG312M
Length
9200 mm
Width
3530 mm
Height
3550 mm
Total weight
35.8 t
Turning radius outer/inner
12235/7682 mm
Wheelbase
4400 mm
Gradeability
15°(Max) °
Driving speed
12.5(Max) km/h
Ground clearance
353 mm
Recommended coverage area
6×6~12×20 m

APPLICATIONS

Pumped-storage hydropower stations
Pumped-storage hydropower stations
Conventional hydropower stations
Conventional hydropower stations
Reservoir irrigation tunnels
Reservoir irrigation tunnels
Compressed air energy storage projects
Compressed air energy storage projects

SUCCESSFUL CASES
