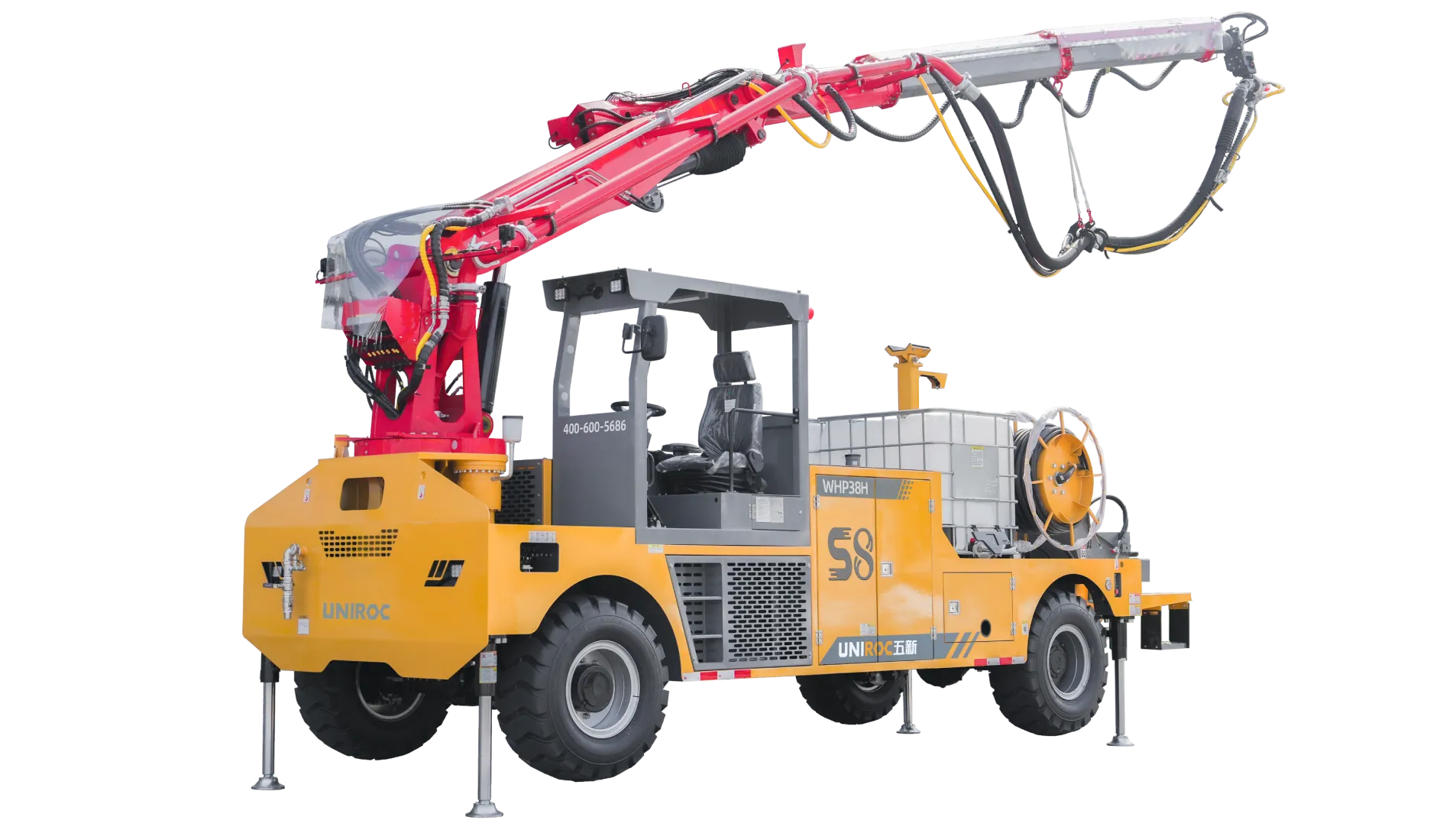

Shotcrete Machine WHP38H

Shotcrete Machine WHP38H

This equipment is applicable for shotcrete and anchor bolting support operations in highway and railway tunnels, pumped-storage hydropower stations, conventional hydropower stations, reservoir irrigation tunnels, and underground caverns.

FEATURES

Main Features:

1.8th-generation new boom design with comprehensive upgrades to the hydraulic and electronic control systems for enhanced stability and reliability.

2.Self-developed pumping system and automatic accelerator dosing system achieve an overall concrete rebound rate of less than 10%.

3.Powerful performance and strong off-road capability enable easy adaptation to complex working conditions.


SPECIFICATIONS

Shotcrete Machine WHP38H

Model
WHP38H
Length
8050 mm
Width
2900 mm
Height
3380 mm
Total Weight (without Accelerator)
14.4 t
Minimum turning radius
7500 mm
Maximum turning radius
11700 mm
Wheelbase
4880 mm
Gradeability
25°(Max) °
Maximum driving speed
19(Max) km/h
Ground clearance
280 mm
Theoretical injection volume
38(Max) m³/h

APPLICATIONS

Highway and railway tunnels
Highway and railway tunnels
Pumped-storage hydropower stations
Pumped-storage hydropower stations
Conventional hydropower stations
Conventional hydropower stations
Reservoir irrigation tunnels
Reservoir irrigation tunnels
Underground caverns
Underground caverns
